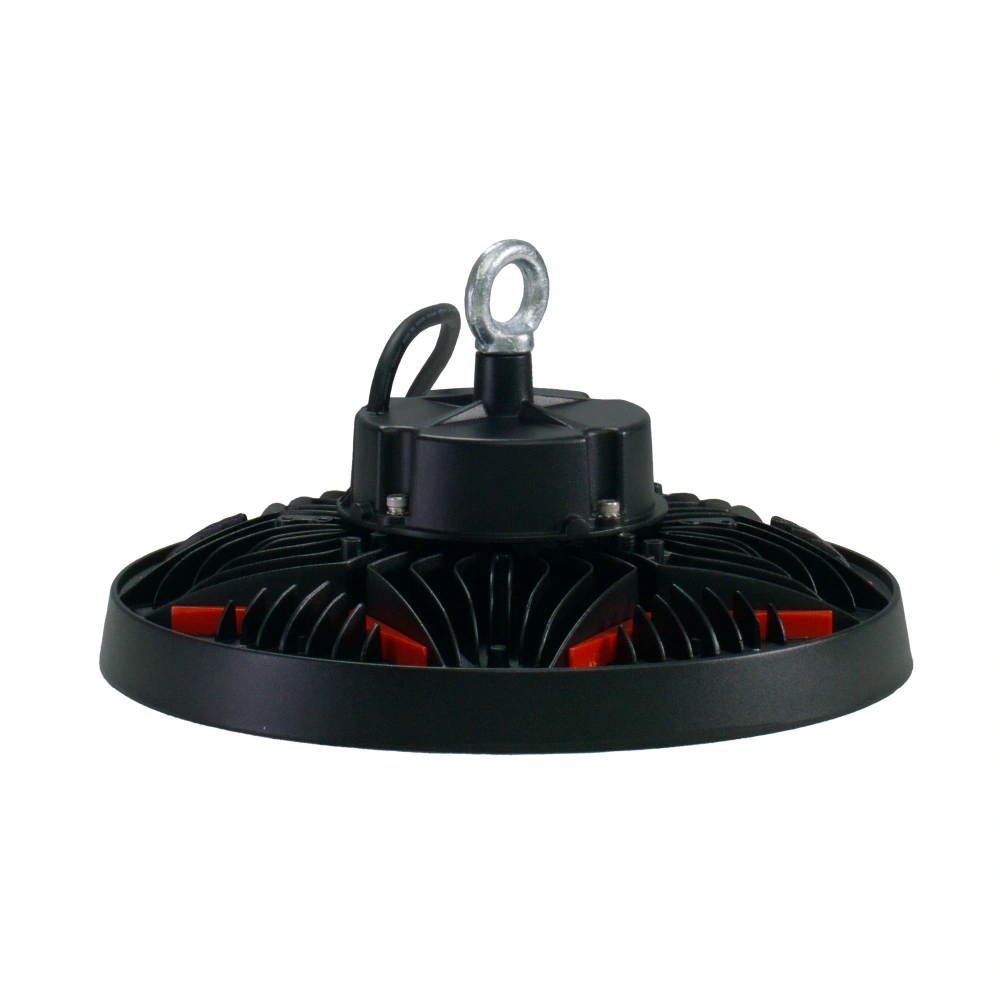

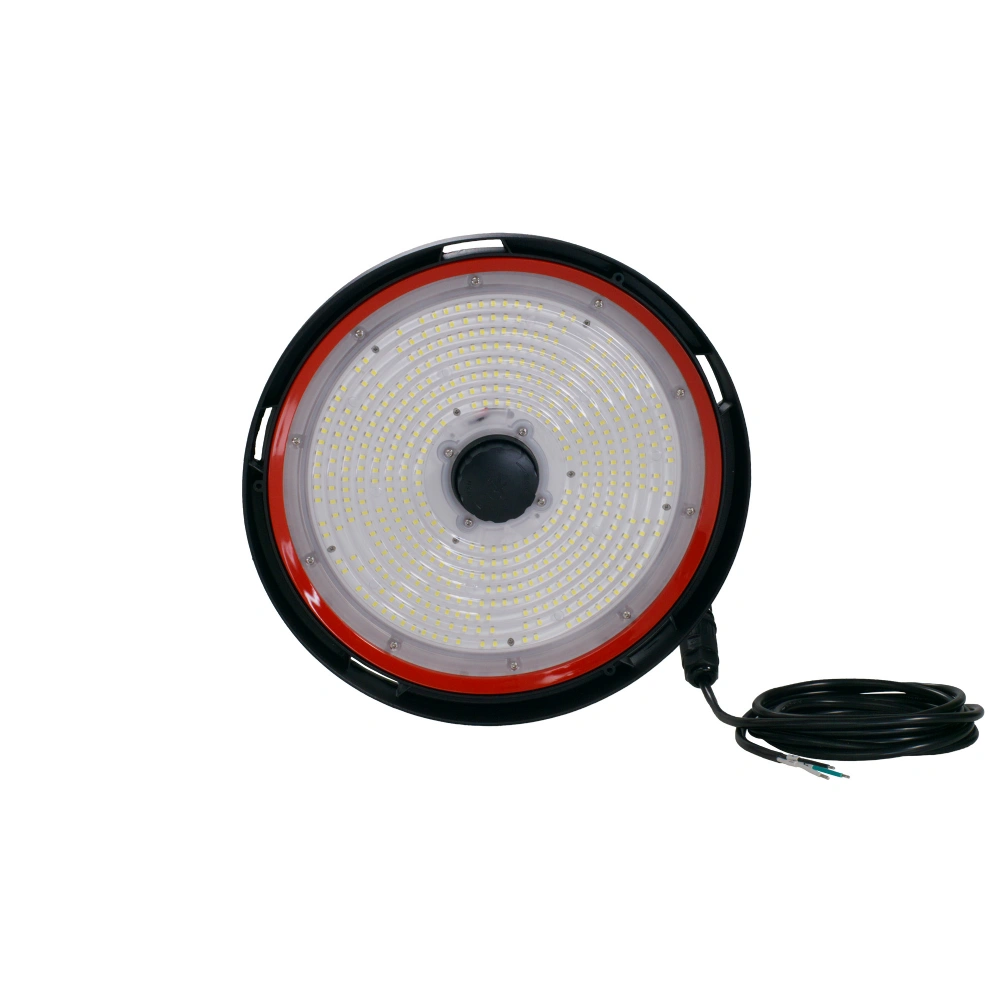

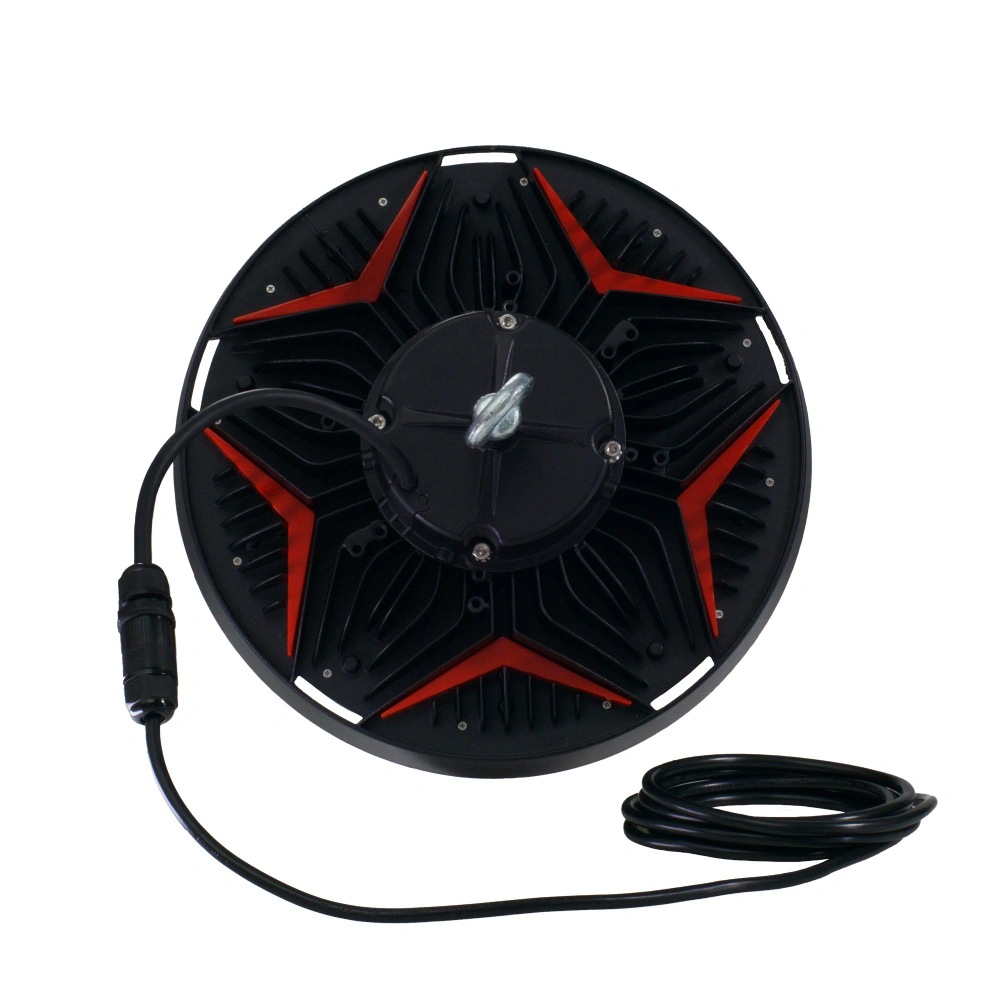

Next-Generation Indoor Sports & Industrial High Bay System

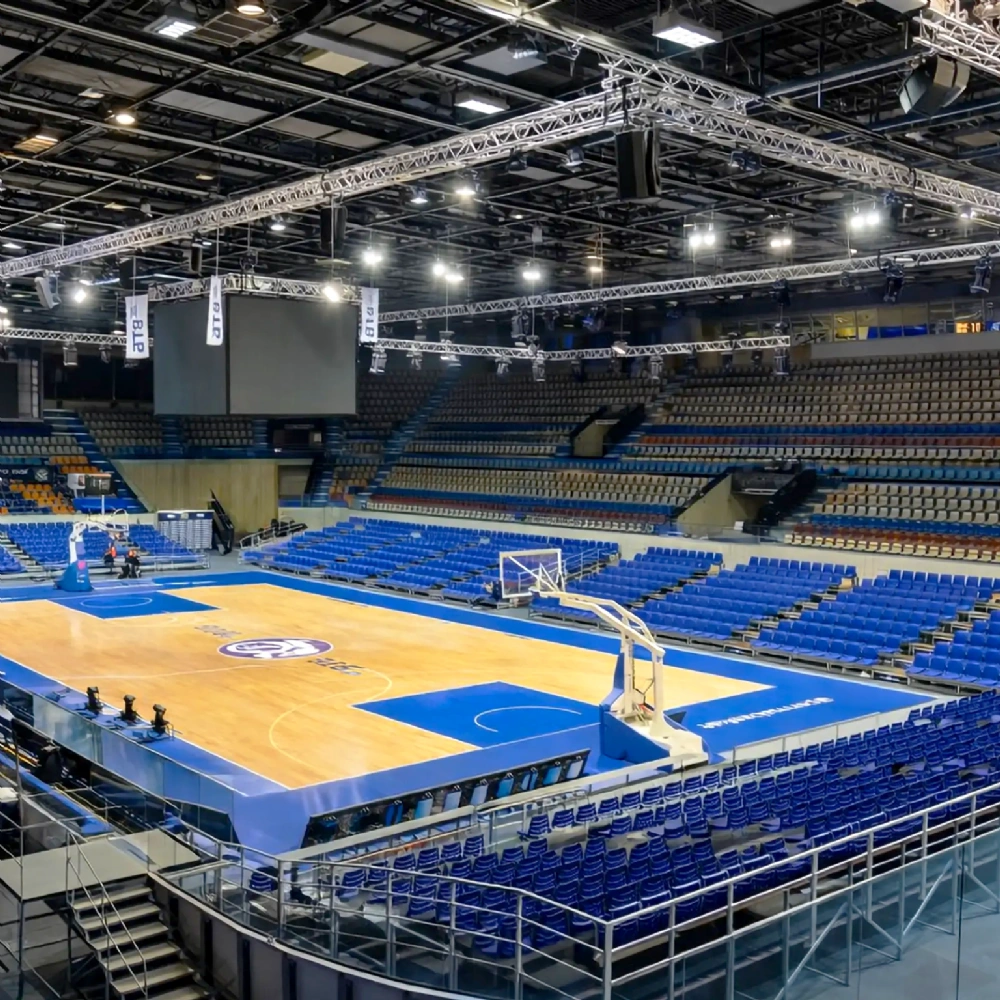

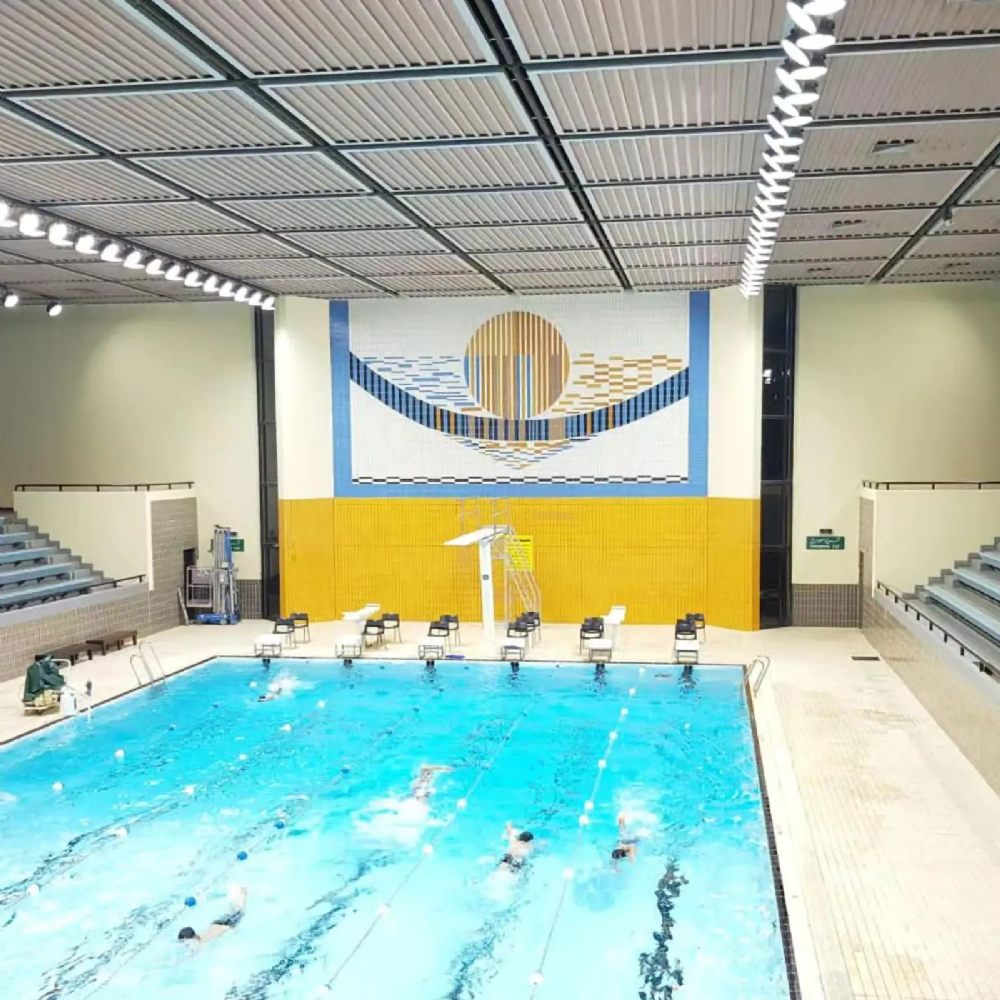

Corebay is a commercial LED lighting system for indoor sports. Available configurations include 100W / 150W / 200W, 100–277V / 277–480V and 60° / 90° / 120° beam angles. Final fixture quantity, mounting and aiming must be determined through a project-specific photometric design.
Performance engineering ensures our fixtures withstand harsh environments while delivering consistent light output.
| Feature | Specification |
|---|---|
| Wattages | 100W / 150W / 200W |
| Lumen Output | 14,000 lm – 30,000 lm |
| CCT | 3000K / 4000K / 5000K (Std.) |
| CRI | 70 (Std.) / 80 / 90 |
| Voltage | 100–277V / 277–480V |
| Beam Optics | 60° / 90° / 120° (Standard 120°) |
| IP Rating | IP20 Standard (IP65 optional) |
| Operating Temp | -4°F to 113°F (-20°C to 45°C) |
| Warranty | 5 Years |
