Glenview Prairie Club — Tennis & Paddle Lighting

Glenview, IL

Duvon™ delivered cold-rated tennis and platform-paddle lighting built for instant-on operation through Chicago-suburb winters down to -40 °F.

Platform paddle ("paddle tennis") is played year-round in the Chicago suburbs, often in sub-zero conditions where conventional metal-halide lamps strike slowly and cycle on cold restart. Glenview's brief required a system that performs identically in -20°F as it does in summer.

Duvon specified Patriot 200W heads with -40°F cold-rated drivers and a hydrophobic lens coating that sheds frost and ice between matches.

Players see instant-on light at any temperature, 1.3:1 uniformity on tennis and 1.4:1 on paddle, and an aggregate energy reduction of 61% across the property.

Highlights

Lighting Class: USTA Class IV

Average Illuminance: 45 fc paddle horizontal

Uniformity: 1.4:1 paddle

Fixtures: Patriot 200W LED Court Lights (5000K, -40 °F cold start)

Energy Savings: Up to 61% vs HID

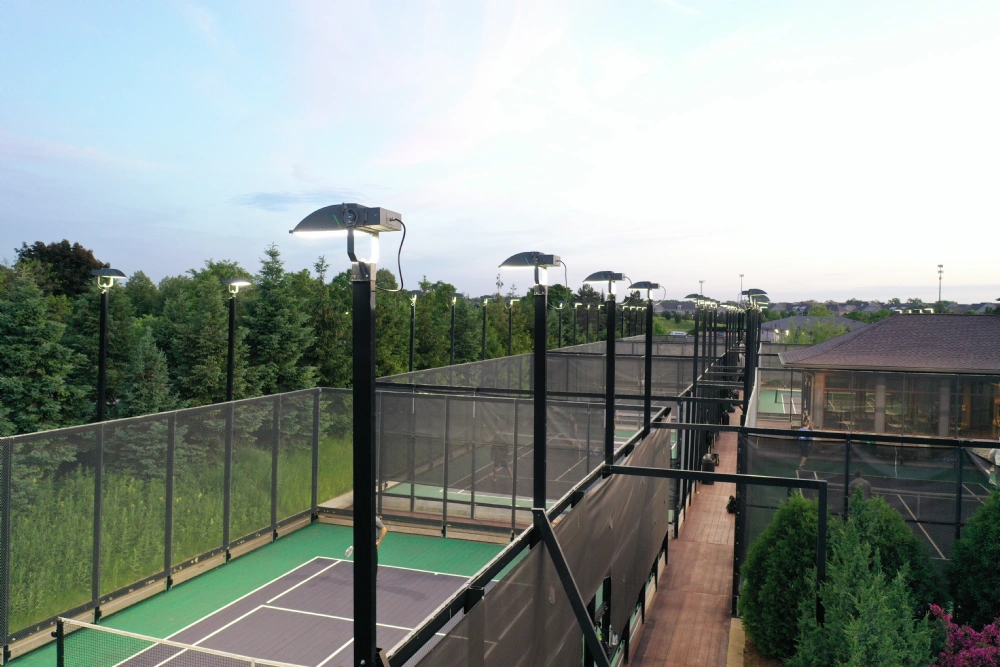

Baseline Perspective Capture

ENGINEERING EXCELLENCE

Cold-rated -40 °F driver bin and hydrophobic lens coating designed to shed frost and ice between matches — a detail the previous metal-halide installation could not address.

USTA / SPORT STANDARD STATEMENT

USTA Class IV compliant for tennis surfaces with verified 1.4:1 uniformity

DARK-SKY COMPLIANCE STATEMENT

Full-cutoff Patriot Series with IES TM-15 BUG U0 rating — zero direct upward emission

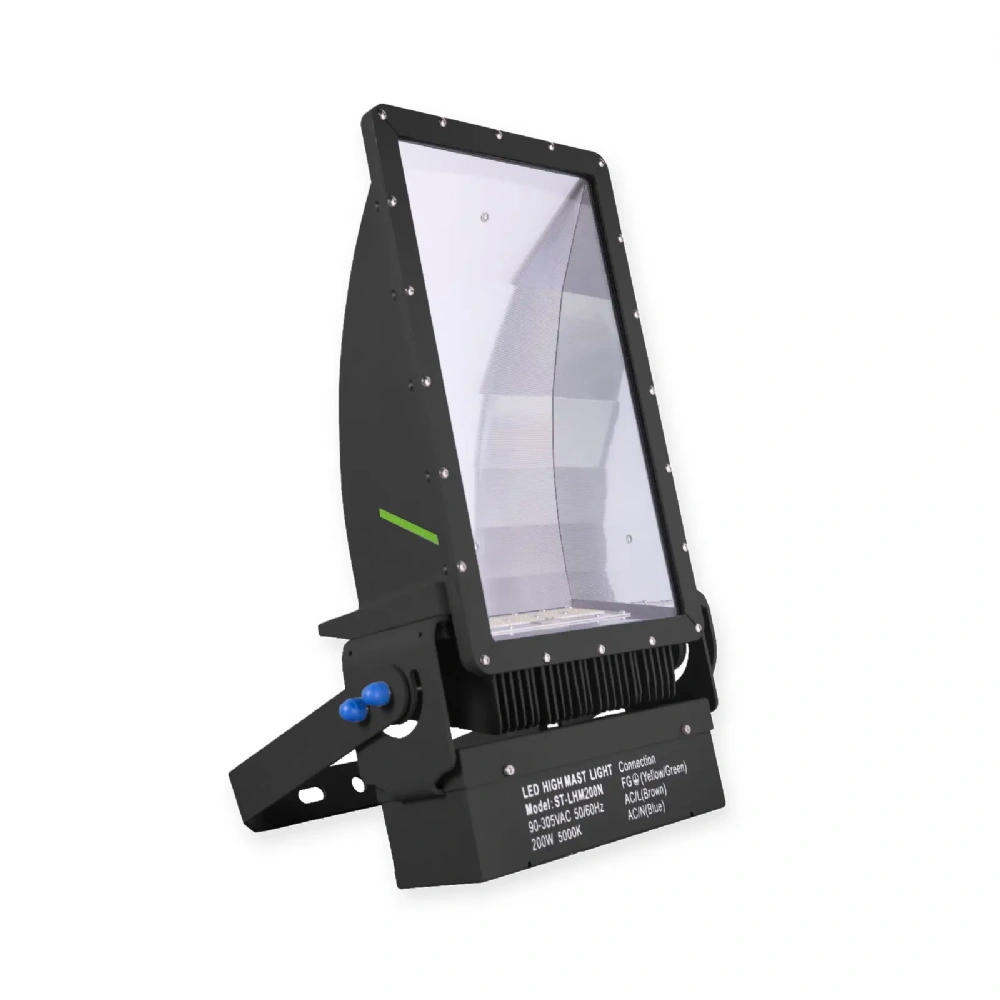

Industrial Design

Technical Data

Core Engine Patriot 200W LED Court Lights (5000K, -40 °F cold start)

Standard Designed to IES, USTA, and ASBA (American Sports Builders Association) court lighting standards.

Efficiency Gain Up to 61% vs HID

Warranty 10-year system warranty
